滿裝圓柱滾子軸承CPM2558 CPM2674 CPM2532 CPM2724 CPM2820 CPM2495

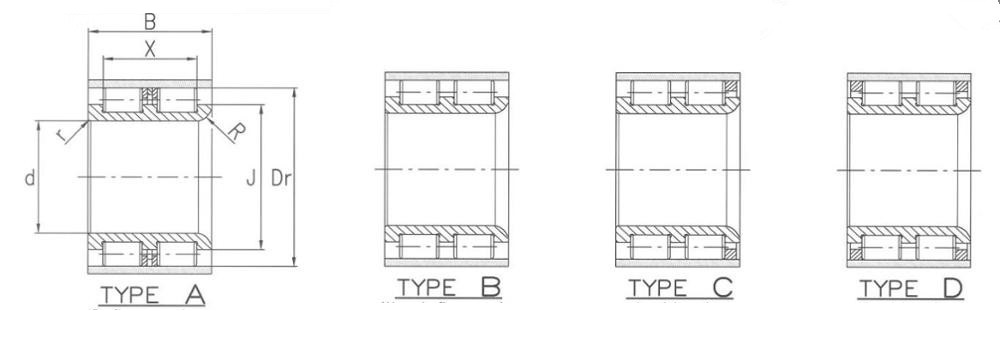

型號	d	Dr	B	J	X	R	r	Cr	Cor	選型
型號	mm					min		kN		選型
CPM2699	18	32.3	20.5	25.9	14.9	2	0.3	24.1	25.7	A
CPM2435	22	36.2	30	30.8	23	2.5	0.7	47.5	68.8	A
CPM2535	22	38.75	22.5	31	17.3	2	0.3	34.6	38.1	A
CPM2834	22	38.75	22.5	31	17.3	2	0.3	34.6	38.1	A
CPM2400	24	40.25	26	34.3	20	2.5	0.3	44	59.8	A
CPM2597	24	40.25	34	34.3	24	2	2	53.3	76.4	A
CPM2686	25	40.25	26	34.3	20	2.5	0.3	44	59.8	A
CPM2613	25	40.25	32	34.3	24	3	0.3	53.3	76.4	A
CPM2776	28	44.45	34	36.5	27.6	2.5	0.3	70.8	99.8	A
CPM2594	30	46.4	32	38.7	27.6	2	0.3	73.2	105.7	A
CPM2687	30	48.25	40	40.6	32	2.5	2.5	85.8	131.6	A
CPM2510	30	49.6	26	38.6	20	3	0.3	57	70.3	D
CPM2178	30	49.6	24	40	18	3	0.3	50.8	60.6	A
CPM2651	30	49.6	25	40	18.9	3	0.3	50.8	60.6	A
CPM2198	30	49.6	26	40	20	3	0.3	57.1	70.4	A
CPM2683	30	49.6	30	40	24	2.6	0.3	69.1	90	A
CPM2508	32	46.6	25	41	20.5	3	0.3	54.3	82.5	D
CPM2183	32	46.6	28	41	22	3	0.3	54.3	82.5	A
CPM2439	32	46.6	28	41	22	3	0.3	54.3	82.5	A
CPM2668	32	48.24	34	41	27.6	2.5	0.3	76	112	A
CPM2496	32	51.75	25	42.5	19.9	3	0.3	59.1	74.7	A
CPM2579	32	51.75	29	42.5	24	3	0.3	71.5	95.5	A
CPM2634	34	50.2	29	42.5	23.6	2.5	0.3	66.7	96.6	A
CPM2434	35	49.8	28	43.9	22	3	0.3	56.8	89.7	A
CPM2723	35	52.09	26.5	44.5	20.9	2.5	0.3	56.6	79.4	A
CPM2470	35	55.52	36	45	28	0.6	0.6	83.6	113.6	B
CPM2520	35	55.52	36	45	28	0.6	0.6	83.6	113.6	A
CPM2706	35	55.52	36	45	28	2.5	0.3	83.6	113.6	A
CPM2721	35	59.19	27	48.2	21.3	3	0.3	68.4	85.5	A
CPM2528	35	64.3	26.5	52.9	20.9	2.5	0.3	72.9	95.7	A
CPM2164	38	52.95	28	47	22	3	0.3	59.2	97	A
CPM2504	38	52.95	29.5	47.5	21.9	3.2	0.1	59.2	97	A
CPM2806	38	52.95	29.5	48.5	21.9	3.7	0.1	59.2	97	A
CPM2464	38	54.686	29.5	49.5	20.7	4	0.1	56.9	86.7	A
CPM2458	38	54.69	29.5	49.2	21.6	4	0.1	63	99	A
CPM2669	38	57.91	38	48	32	3	0.3	106	156	A
CPM2827	40	57.81	34	50	28	3.2	0.3	96	141	A
CPM2729	40	60.68	31	51.4	25.6	3.2	0.3	80.8	118.1	D
CPM2188	40	61.74	28	50.2	20.9	3	0.3	70.6	90.6	C
CPM2650	40	61.74	35.5	50.2	27.6	2.6	0.3	100	140	A
CPM2412	42	60.75	37	51.5	30.9	3	0.3	100.7	156.9	A
CPM2777	42	60.75	37	51.5	31.6	3	0.3	107.2	169.7	A
CPM2592	44	61.6	34	53.9	28	3.2	0.3	90.1	153	A
CPM2401	44	62.97	37	53.4	30.9	2.5	0.3	103.5	164.4	A
CPM2559	45	61.55	32	53.8	24.9	3	0.3	77.3	125.7	A
CPM2425	45	61.55	36	53.9	28.9	3	0.3	90	153	A
CPM2647	45	65.02	34	54.5	27.3	3	0.3	94.3	140.4	A
CPM2722	45	66.85	37.5	55.8	28.6	3.5	0.3	105.8	156.7	A
CPM2828	45	66.85	37.5	55.8	28.6	3.5	0.3	123	157	A
CPM2619	45	83.88	85	64.2	64.7	1.1	1.1	268	393.9	D
CPM2807	46	69.5	45	56.5	37.3	3.2	0.3	145	207	A
CPM2530	50	67.28	32	61	25.8	3.2	0.3	75.7	145.2	A
CPM2720	50	67.36	40	60.4	32.6	4	1	109	201	A
CPM2719	50	69.58	40	60.3	33.3	3	0.3	118	202	B
CPM2492	50	69.67	32	60.3	24.9	3	0.3	89.1	141	A
CPM2609	50	69.67	37.5	60.3	31.4	2.5	0.3	111.2	186.9	A
CPM2466	50	72.05	37	61.8	28.5	4	0.1	111.7	172.5	A
CPM2190	50	72.33	40	59	33.1	1.1	1.1	130.9	194.3	C
CPM2465	50	72.33	40	59	33.1	1.1	1.1	130.9	194.3	C
CPM2596	50	72.330	40.0	59.0	33.1	1.1	1.1	130.9	194.3	A
CPM2798	50	81.450	32.0	65.0	26.1	3.0	0.3	124.2	163.4	A
CPM2698	55	76.940	40.0	66.0	31.1	3.0	0.3	125.0	205.0	A
CPM2819	55	83.540	47.0	68.5	40.1	3.5	1.1	177.5	279.8	A
CPM2731	55	85.070	41.0	66.0	33.8	3.0	0.3	161.0	218.0	A
CPM2620	55	94.760	100.0	73.4	76.7	1.1	1.1	321.5	491.3	D
CPM2558	55	88.850	52.0	72.5	42.1	6.2	0.5	206.0	303.0	A
CPM2674	55	88.850	52.0	72.5	42.1	6.2	0.5	206.0	303.0	A
CPM2532	60	83.830	46.0	71.0	39.8	2.5	0.3	171.7	289.8	A
CPM2724	60	83.830	46.0	71	39.8	2.5	0.3	171.7	289.8	A
CPM2820	60	83.830	46.0	71.0	39.8	2.5	0.3	171.7	289.8	B
CPM2495	60	83.830	47.0	71.0	39.8	2.5	0.3	171.7	289.8	A
CPM2566	60	83.830	47.0	71.0	39.8	2.5	0.3	171.7	289.8	A
CPM2821	60	83.830	50.0	71	39.8	6.3	0.3	171.7	289.8	A
CPM2805	60	83.830	65.0	71	53.8	6.3	0.3	219.9	398.5	A
CPM2799	60	89.800	52.0	72.6	42.6	4.0	0.3	206.1	311.0	A
CPM2656	65	89.800	48.0	78.5	40.6	4.0	0.3	173.5	329.3	A
CPM2816	65	93.090	46.0	78.5	39.0	4.0	1.1	192.3	322.0	D
CPM2652	65	93.090	46.0	78.5	39.0	4.0	1.1	192.3	322.0	D
